General Approach to Configuring Layered Navigation Extensions

This topic describes how to start to configure layered navigation extensions. We also recommend to read:

Contents:

Admin Panel Menu

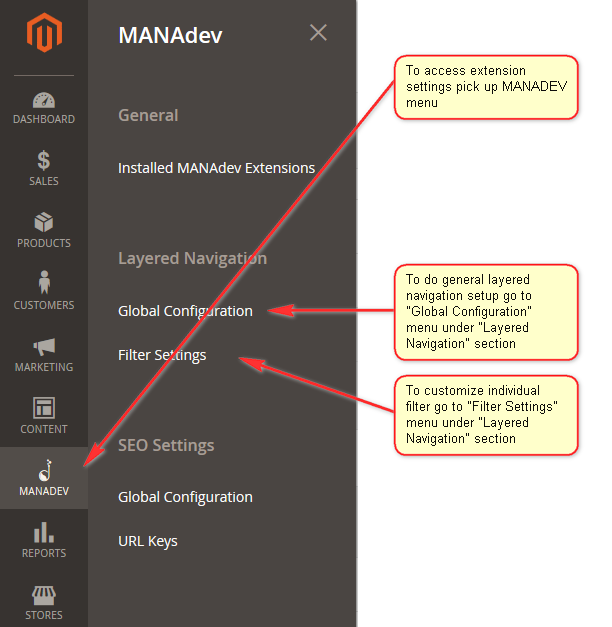

All MANAdev layered navigation extensions (except our free extension Multiple Select for Layered Navigation (Filters)) share the same approach to configuring layered navigation. In order to access extension settings, pick up MANADEV menu on the left sidebar.

First of all it is convenient to configure settings applicable to all filters. Layered navigation extension in general can be set up in Global Configuration menu under Layered Navigation section.

Later on you can customize certain settings for each filter. Individual filter configuration can be adjusted in Filter Settings menu.

Admin Panel Menu

Global Configuration

Section defines default templates for certain types of layered navigation filters. Depending on installed extension it may have more settings.

Later on, every specific filter can be customized in MANADEV -> Layered Navigation -> Filter Settings menu.

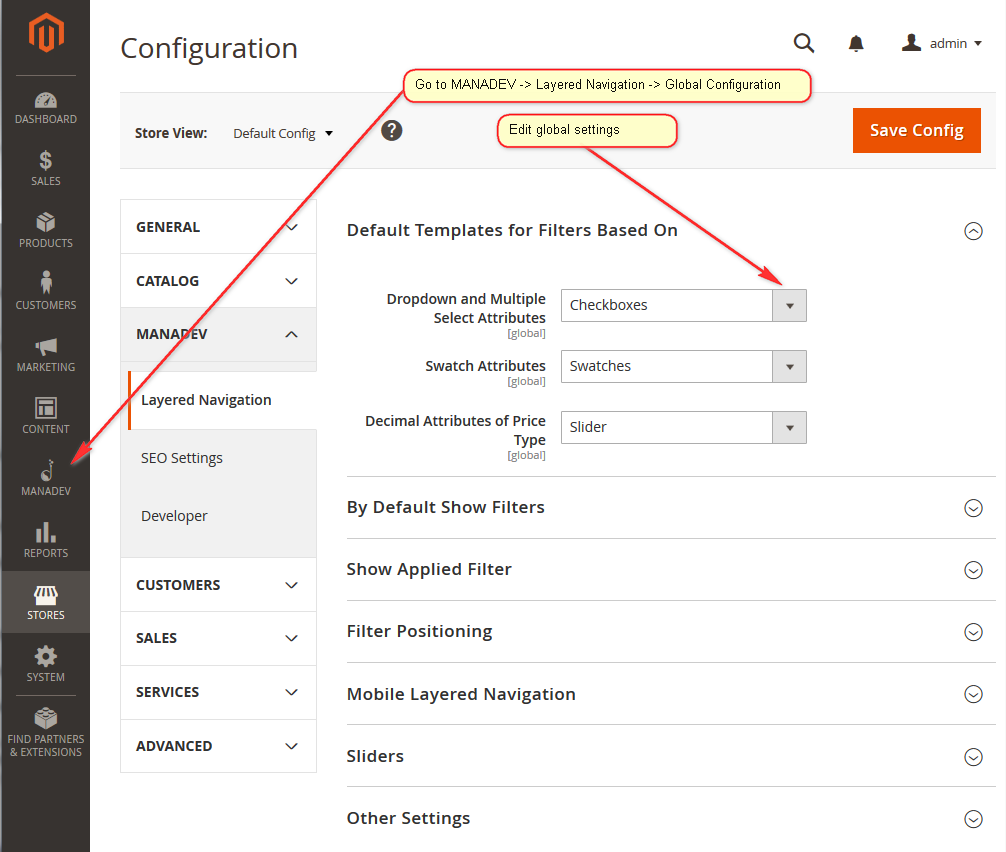

In order to do global set up, go to menu MANADEV -> Layered Navigation -> Global Configuration on the left sidebar and edit global settings:

Global Configuration

Parameters are feature specific and are described under every feature.

Filter Settings

All store filters are listed in MANADEV -> Layered Navigation -> Filter Settings menu and every filter can be customized there individually.

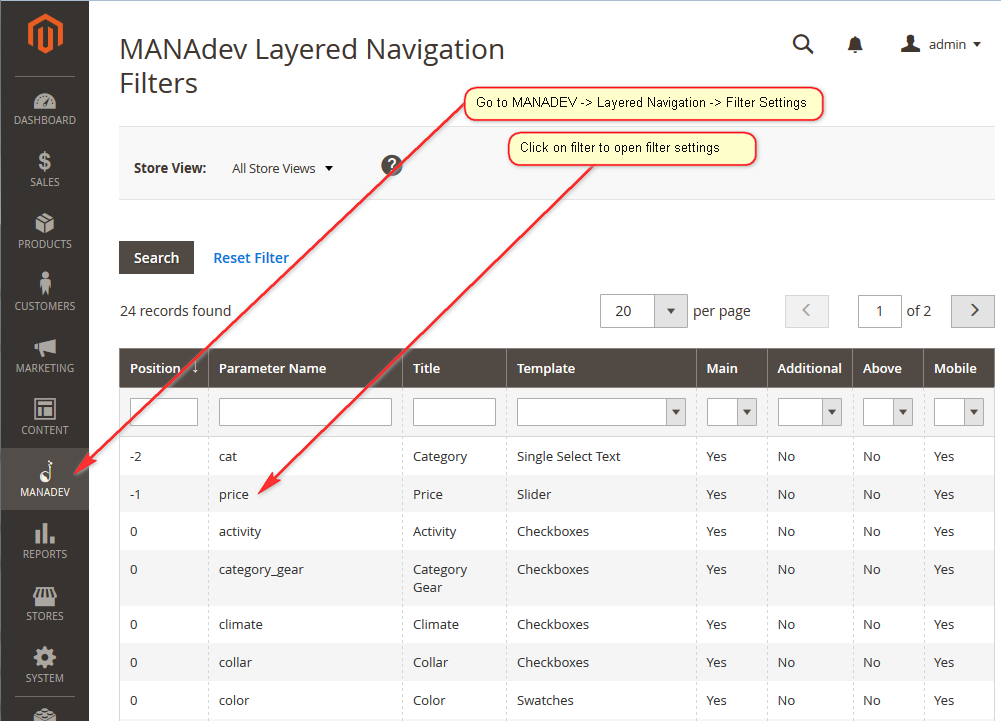

In order to do filter customization, go to menu MANADEV -> Layered Navigation -> Filter Settings on the left sidebar and click on filter to open filter settings:

Filter Settings

Filter Editing

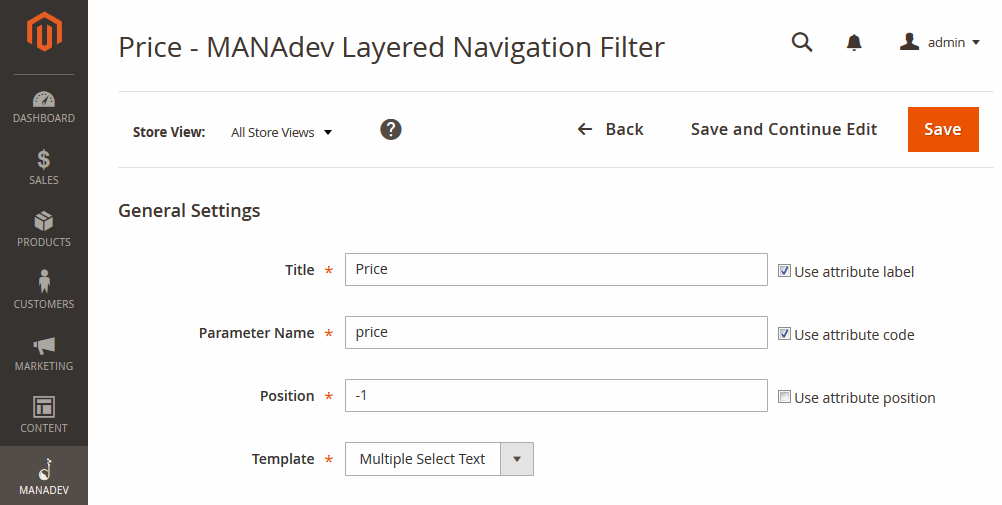

Most of filter parameters are self-descriptive. Note checkboxes on the right, use them to restore a setting to default value, which is defined in a place written in checkbox label - store configuration or attribute definition:

Filter Editing

Section parameters are feature specific and are described under every feature.
