Filter Specific Configuration

Filter Specific Configuration (MANADEV -> Layered Navigation)

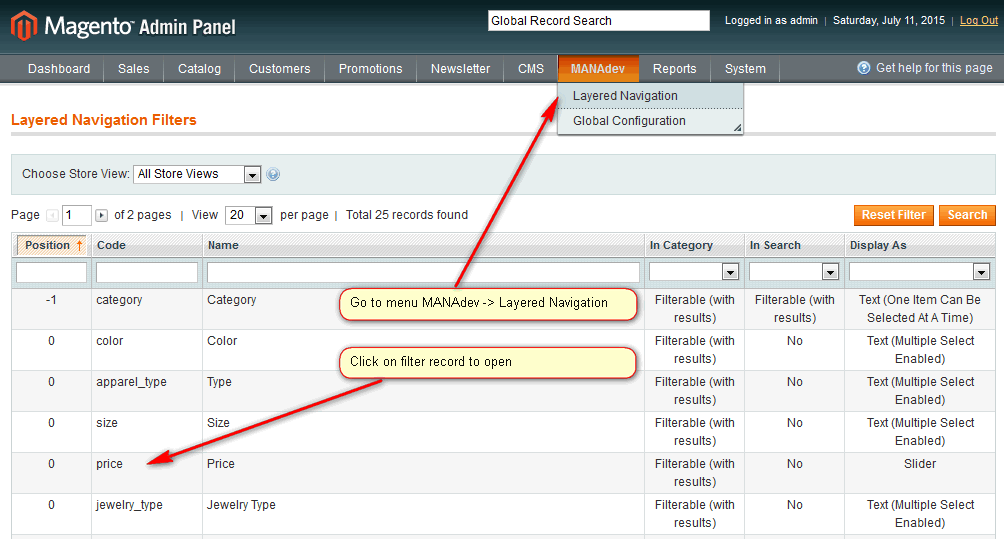

Layered Navigation Filters

MANAdev -> Layered Navigation

All store filters (filterable attributes and categories) are listed in MANAdev -> Layered Navigation menu and every filter can be customized there individually.

Layered Navigation Filters

Individual Filter Configuration

MANAdev -> Layered Navigation -> [filter]

After clicking a filter in layered navigation filter list, new window opens with filter options.

General Tab. General Information

  • Name - filter block label, which appears in frontend. Filter name also is used to build URL. Name could be set on store level. If Use Attribute Configuration is checked, attribute label will be used.

  • In Category - to show or hide filter block in layered navigation on category pages. This parameter also used for Layered Navigation on CMS pages or in Shop By Brand MANAdev extension. This parameter overrides Use In Layered Navigation value, which is set for attribute.

    • No - filter will not be shown in category layered navigation
    • Filterable (with results) - filter is shown in category layered navigation. However only options, where product are available will be listed for the filter.
    • Filterable (no results) - filter is shown in category layered navigation. If filter is set as Filterable (no results), it will list all options, even no products are available now for specific option
  • In Search - to show or hide filter block in layered navigation on quick search pages. This parameter overrides Use in Search Results Layered Navigation value, which is set for attribute.

    • No - filter will not be shown in quick search layered navigation.
    • Filterable (with results) - filter is shown in quick search layered navigation. However only options, where product are available will be listed for the filter.
    • Filterable (no results) - filter is shown in quick search layered navigation. If filter is set as Filterable (no results), it will list all options, even no products are available now for specific option

General Tab. Display Settings

  • Display parameter - here you can change filter appearance by choosing different template like checkboxes or slider.

    • Text (Multiple Select Enabled) - few options of the same filter can be chosen like Skirts and Dresses.

      Filter Display As Text

    • Text (One Item Can Be Selected At A Time) - only one filter option can be chosen at a time like only Skirts or only Dresses.

      Price Type Filter Display As Text

    • Checkboxes (Form Elements) - checkbox template, that uses checkbox form element for choosing filter options. Appearance can look different on different machines and different browsers.

      Filter Display As Checkboxes (Form Elements)

    • Checkboxes (Images). Images are used instead of form elements and looks the same in all browsers. These images can be changed to any other images, like other shape or color images. These images can be found in skin skin/frontend/base/default/images/manapro_filtercheckboxes/

      Filter Display As Checkboxes (Images)

  • Position - filter position. Filters with lower position will be highest on the Layered Navigation.

  • Sort Items By - how filter options are sorted inside filter.

    • Position - all filter options are sorted by attribute option position. Options with lower position will be highest on the list. Option positions are set in Magento attribute management.
    • Position (selected at the top) - all filter options are sorted by attribute option position, but selected options will be placed higher.
    • Name - all filter options are sorted by attribute option name in ascending order.
    • Name (selected at the top) - all filter options are sorted by attribute option name in ascending order, but selected options will be placed higher.
    • Count - options with the largest products count will be highest on the list.
    • Count (selected at the top) - options with the largest products count will be highest on the list, but selected options will be placed higher.
  • Combine Multiple Selections Using - defines how products will be chosen, If several options are selected within one filter.

    • Logical OR - products, having ANY of selected options assigned will be shown. For example, if blue and red options for color filter are selected, blue products and red product and even those product which are red/blue will be shown.
    • Logical AND - only products, having ALL selected options assigned will be shown. It is mostly applicable to Multiple Select type attributes.

    For example, "Decoration" attribute is of Multiple Select type and has some options defined:

    Attribute With Multiple Select Input

    When product is created, several options can be assigned:

    Product With Several Options Selected

    If Logical AND is set for Decoration filter, then only products having both Pockets and Bow options assigned will be shown when these two options are selected in Layered Navigation.

    Logical AND In Layered Navigation

  • Reverse Mode. If enabled, shows all options as selected and allows user to deselect items he/she is not interested in.

  • Filterable (no results) Links Are Not Clickable. If filter is set as Filterable (no results), it will list all options, even if no products are available. This parameter makes such options non clickable.

    For example, field Use In Layered Navigation is set to Filterable (no results) for filter "Type":

    Attribute Filterable (no results)

    In layered navigation, options without available products will be non clickable, if this parameter is set to Yes:

    Filterable (no results) Links Are Not Clickable
